FILTER PRESS
THE WORLD'S FASTEST PLATES FILTER PRESSES - TECHNOLOGICALLY ADVANCED
The Matec plates Filter Press is designed to achieve the best results in industrial sludge dewatering. All Matec filter presses are designed for use with HPT (High Pressure Technology) capable of working both at operating pressures common to all filter presses, 5-7 bar, and at high pressures close to or above 16-21 bar. This is made possible by the highly specialised design of our machines and the use of the highest quality and engineering level components such as hydraulic power units and pistons, oversized chassis structures and in addition high-pressure pumps from Alfa Pompe.
We work for many different sectors, the most important being mining, aggregates, gravel, sand, stone, ceramics and glass. Our mission is total customer satisfaction, so we offer prompt after-sales service, as well as pre-sales consulting to understand the real needs of our potential customers.
400/500/630
The Aquae range includes small filter presses to ensure work in application areas where only small capacities and material flow rates need to be processed
800/1000
The Ignis range includes medium-sized filter presses to ensure the work of application areas where only small/medium capacities and small/medium material flow rates need to be processed
1200/1300/1500

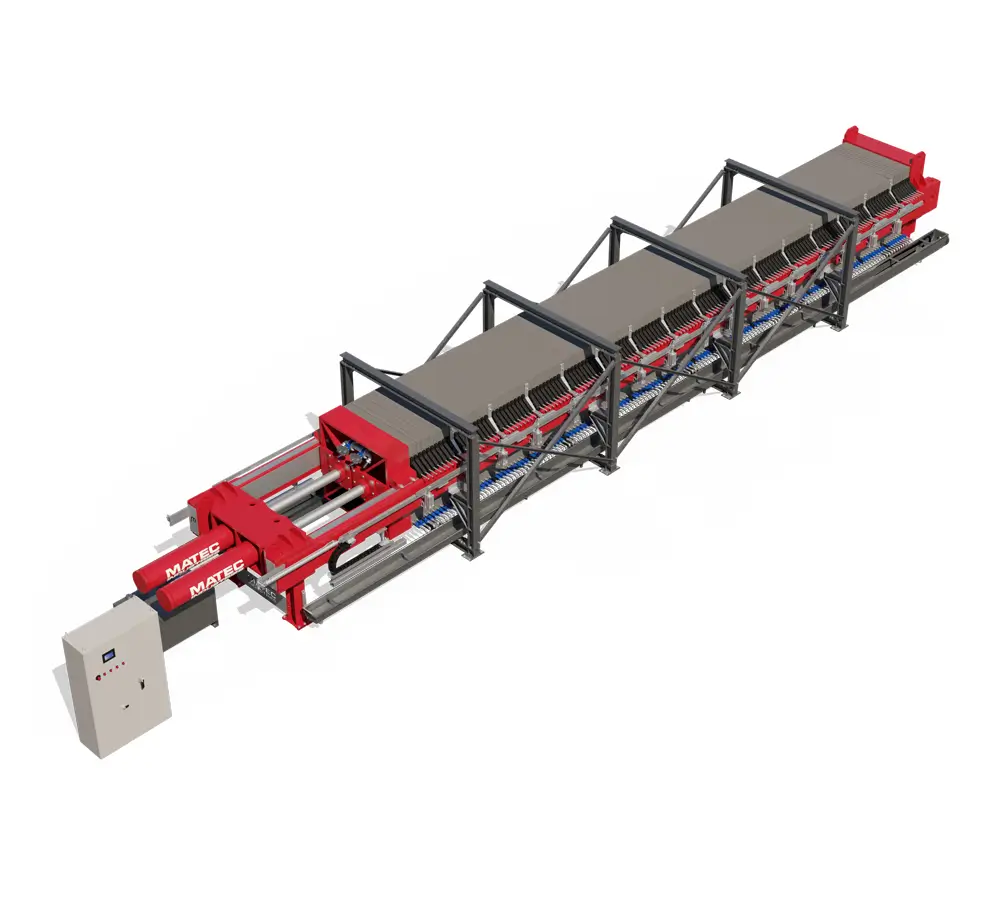

The Terrae range includes medium/large filter presses to ensure work in application areas where only medium/large capacities and medium/large material flow rates need to be processed
2000
The Magnum range includes large filter presses to ensure work in application areas where only large capacities and high material flow rates need to be processed
2500

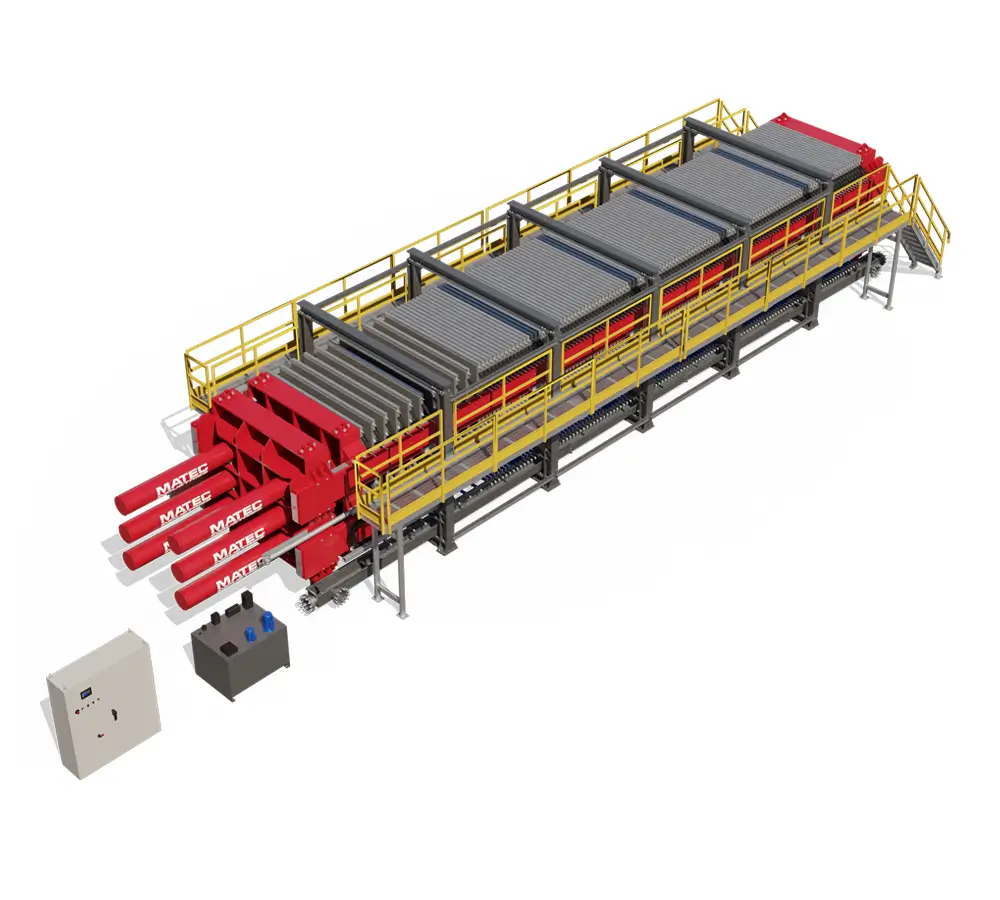

The Megalith range includes the largest filter presses to ensure work in application areas where only huge capacities and flow rates need to be handled
1500/2000/2500

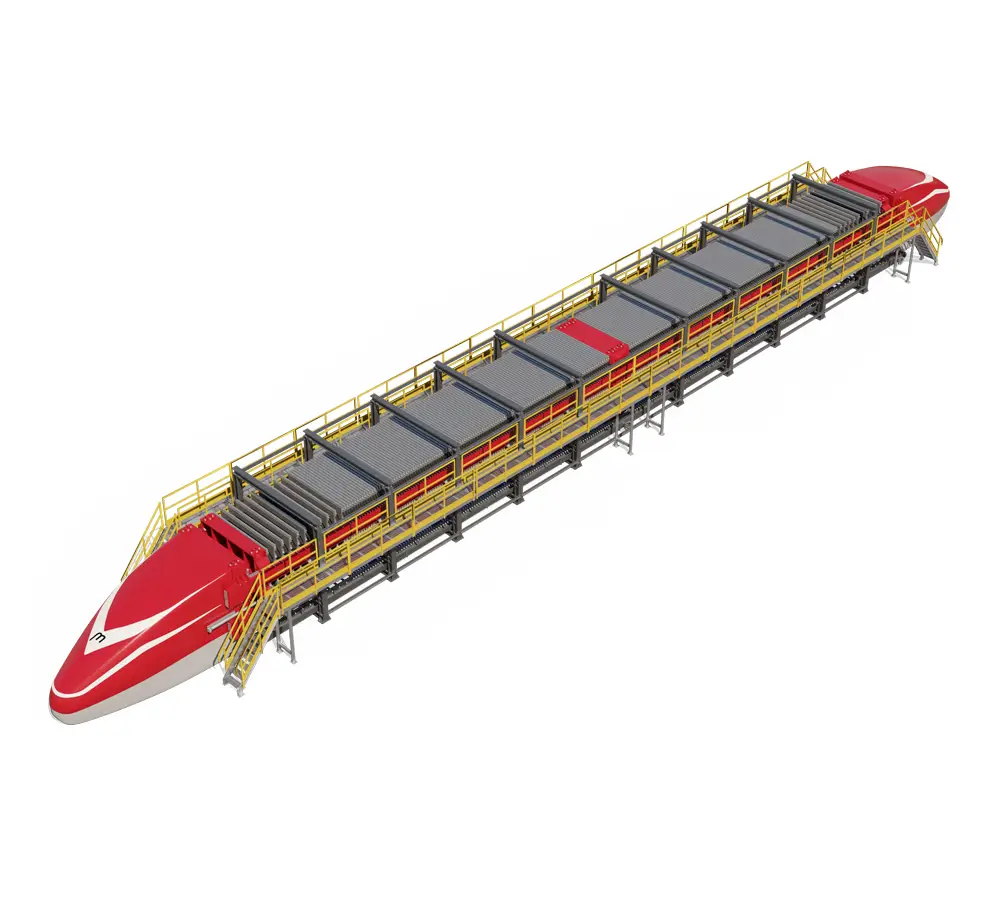

The Twin Frecciarossa range includes the largest filter presses, which are more productive in terms of running time and quantity of sludge to be treated with the same footprint
NEW PROJECTS
The Matec development team is always on the lookout for new ideas to design and develop state of the art machinery
400/500/630
The Aquae range includes small filter presses to ensure work in application areas where only small capacities and material flow rates need to be processed
1200/1300/1500
The Terrae range includes medium/large filter presses to ensure work in application areas where only medium/large capacities and medium/large material flow rates need to be processed
2500
The Megalith range includes the largest filter presses to ensure work in application areas where only huge capacities and flow rates need to be handled
NEW PROJECTS
The Matec development team is always on the lookout for new ideas to design and develop state of the art machinery
800/1000
The Ignis range includes medium-sized filter presses to ensure the work of application areas where only small/medium capacities and small/medium material flow rates need to be processed
2000
The Magnum range includes large filter presses to ensure work in application areas where only large capacities and high material flow rates need to be processed
1500/2000/2500
The Twin Frecciarossa range includes the largest filter presses, which are more productive in terms of running time and quantity of sludge to be treated with the same footprint
BOOK AN APPOINTMENT
Contact us by phone +39 0585 8365 or by email matec@matecindustries.com
WHY 4000 CUSTOMERS CHOSE MATEC PLATES FILTER PRESSES
FREQUENTLY ASKED QUESTIONS (FAQ)
HOW DOES A PLATES FILTER PRESS WORK?
The filter press is an industrial machine used to make dewatered sludge through solid-liquid separation processes. It is a process of reducing the volumes of liquid substances with suspended solids inside.
Today, filter presses are used in different industrial sectors, for example for the dewatering of sludge from wastewater treatment processes, civil and industrial, and in many other processes such as chemical/pharmaceutical, aggregates and mining.
See article for more details: How does a filter press work?
WHAT ARE THE ADVANTAGES?
The end result using Matec filter presses is to have perfectly compact sludge with residual moisture below 16% -25% in the aggregates and marble sector and up to 8% in the mining sector while guaranteeing fully purified water ready for reuse.
WHAT IS HPT TECHNOLOGY?
HPT – 10/16/21 BAR | HIGH PRESSURE TECHNOLOGY
Matec filter presses were created for the aggregates sector where HPT (High Pressure Technology) is essential to achieve excellent results with difficult slurries, whereas our competitors come from sectors such as olive oil, marble and chemicals.
HPT is more expensive, needs higher quality and better components:
- Bigger pistons
- Larger hydraulic motor
- More iron for the frame structure
WHY CHOOSE A MATEC FILTRATION SYSTEM?
- To comply with relevant EC legislation and ARPA, ASL and public body standards
- To minimise sludge disposal costs
- Minimum space required for disposal
- 90% recovered water
- Sludge volume reduced by 80%
HIGH PERFORMANCE
- Fully automatic installations, no need for an operator
- Working pressure up to 21 BAR (HPT)
- Sludge treatment up to 200 TPH
- Anti-seismic certification of decanters
CERTIFIED QUALITY
Over the years, Matec has always focused on quality, obtaining ISO 9001-2006 RINA and IQNET certifications, testifying to its qualitative and state-of-the-art production cycle. All processes, from the formulation of the offer to the realisation of the manufactured product, including welding, are certified to guarantee superior quality.
Certifications include:
- Anti-seismic certification of decanters
- Certification of pistons tested with safety factor 2:1 (pistons working at 350 bar=5000psi are tested and certified for safety at 700 bar=10000psi)
- Certified welding with licence
- Certified high-strength steels
- Switchgear and components certified CE, UL/CSA, MSHA, NEMA
IS THERE AFTER-SALES SERVICE?
Matec guarantees the best after-sales service with innovative, state-of-the-art solutions. Our machines are equipped with a dedicated QR code that allows the customer, in total autonomy, to view and download user manuals, installation tutorials and troubleshoot common operating problems.
M.A.R.A.® – MATEC AUTOMATION REMOTE ASSISTANCE
With M.A.R.A. every maintenance intervention is quick and efficient thanks to the remote assistance available through the tablet provided. In fact, it is possible to intervene immediately to solve a problem either autonomously or in assisted mode, connecting with a remote expert who will indicate all the operations to be carried out, or managing, directly from our premises, all the problem-solving processes quickly and with great timeliness.
The advantages for the customer are countless:
- zero waiting time;
- reduction of downtime;
- zero thoughts, we take care of everything.
